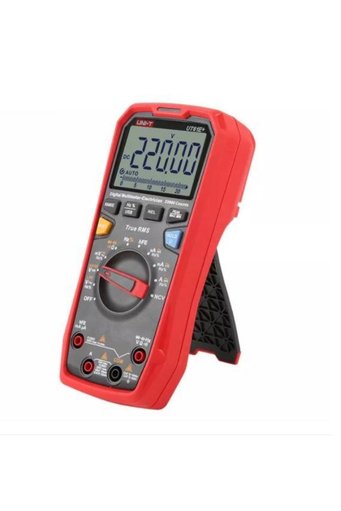

Unit Uni-T Ut 61E+ True Rms Digital Multimeter 1000V Ac/Dc 20A Ac/Dc Ncv

Product description

Ut61e+ 1000v true rms digital multimeter the ut61+ series are reliable true rms digital multimeters with 6000 (ut61b+/d+) and 22000 (ut61e+) display digits.

it can measure up to 1000v ac/dc.

this series equipped with audio and visual alarm, can give warning in particular when high voltage/current and temperature measurement

- true rms - data hold/backlight - max/min/relative mode - usb communication - input protection - diode/continuity test - ncv (audible/visual alarm) - lpf acv - acv+dcv - transistor hfe - peak hold specifications range ut61e+ certifications (ut161 series only) ce/rohs/cetlus safety ratings cat iii 1000v/cat iv 600v ac voltage (v) 1000v ±(0. 8%＋10) dc voltage (v) 1000v ±(0. 05%＋5) ac current (a) 20a ±(0. 8%＋10) dc current (a) 20a ±(0. 5%＋10) resistance (ω) 220mω ±(0. 5%＋10) capacitance (f) 220mf ±(3%＋5) frequency (hz) 220mhz ±(0. 01%＋5) duty cycle (%) 0% . 1~99. 9 ±(2%＋5) display count 22000 bandwidth (hz) 40~10khz lpf acv √ acv+dcv √ transistor hfe √ peak hold √ analog stick 46 general features power 1.5v battery (r03) x 4 product net weight 350g product size 190mm x 90mm x 50mm standard accessories battery, gold-plated test leads, usb cable, multi-purpose temperature socket, english manual

Additional info

• The selling price on Trendyol already includes the export-related costs.
• Sold by
  Hatfon Elektronik
  .
• Made in Türkiye
• A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
• Barcode No: 50543
• Origin: TR
