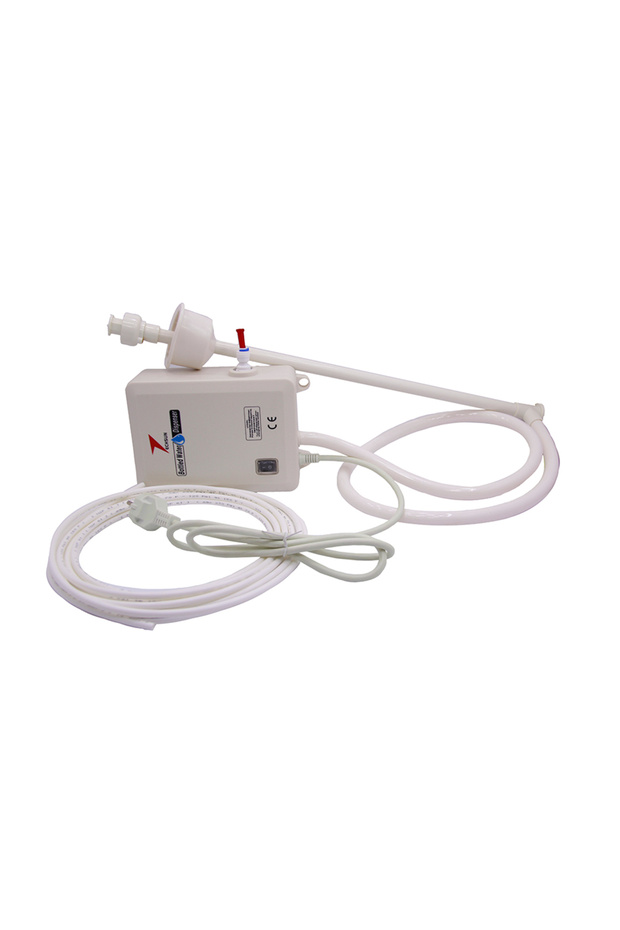

TECHSUN Tch12380 230V Bottled Water Pump Refrigerator Water Supply Pump 3.8 L/Min 2.8 Bar

Product description

Techsun tch12380 is an electric water pressure pump designed for use in refrigerators and suitable water dispenser systems, capable of supplying water from a dam or bottle. It helps to transfer the water it receives from the water source to the refrigerator or dispenser system by pressurizing it. It is particularly suitable for use in systems where there is no mains water connection and water supply is desired through a water bottle. The product, which operates with 230v ac, consumes a maximum of 0.25 a current.

has a water pumping capacity of 3.8 liters/minute and a maximum pressure of 40 psi (2.8 bar). The product is offered for use with a 1/4” (6.3 mm) inner diameter, 6 meter long hose.

Technical specifications * model: tch12380 * product code: b0004042 * operating voltage: 230v ac * frequency: 50/60 hz * maximum current: 0.25 a * water flow: 3.8 l/min * maximum pressure: 40 psi / 2.8 bar * hose connection: 1/4” / 6.3 mm * hose length: 6 meters * pump size: 76 × 140 × 190 mm application areas * refrigerators with bottle connection * refrigerator water supply systems * water systems without mains water connection * bottle type water dispensers * various water supply systems with suitable pressure and flow values ⚠️ Important product is the universal water supply pump. It is recommended to check the operating pressure, water flow rate, and hose/connection sizes of the device to be used before purchasing. Note: the product is not an oem part of a specific refrigerator model

it can be used in systems with suitable technical values.
