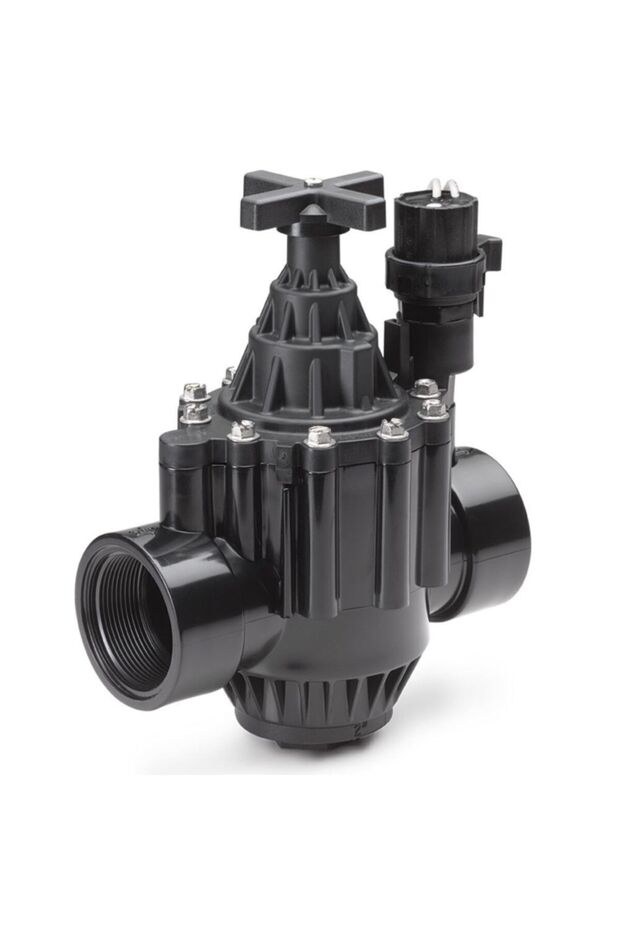

Rainbird Rain Bird 200 Pga 24v Solenoid Valve features
Origin
US
HDGRUPSULAMA
1.2K followers
Seller information
Similar items
Rainbird Rain Bird 200 Pga 24v Solenoid Valve reviews
5 ratings
1 reviews
Product Q&As
Is the product no mu nc, that is, does it allow water passage in case of power failure?
Answer from HDGRUPSULAMA
Hello, when the electricity is cut off, if it is in the on position, it remains on, if it is off, it remains off.
Translated by Google
Product details
Product description
Plastic solenoid valves– they are made to last…. Plastic valve for residential/small commercial applications that offers the possibility of entry from the bottom and side. It provides flexibility in pga series applications and design.
attached diaphragm to the body ensures longer life.
long-lasting and reliable application.
heavy duty pvc construction. General features easy maintenance - the solenoid consisting of a spring and a single piece that prevents ejection provides easy maintenance, preventing the loss of parts. Thanks to the flow adjustment lever, you can adjust the flow rate as desired. The system is activated with a ¼ turn and thanks to manual discharge, the flow of water into the valve box is prevented. It provides the opportunity to adjust the pressure regulator without opening the valve from the control unit.
- suitable solenoid with lever. Versatility - adjustable pressure unit from 1 to 6.9 bar (prs-dial, to be ordered separately) - can also be delivered with a 9v latching solenoid: 100-pga-9v, 150-pga-9v, 200-pga-9v.
- compatible with rain bird mdc decoder system.
reliability - slow closing that prevents ram impact protecting the system from harm. - the dual filter prevents the solenoid valves from clogging.
Models 100-pga: 1“ (26/34) internal thread (bsp) 100-pga-9v: 1“ (26/34) internal thread (bsp), latching solenoid
150-pga: 1.5“ (40/49) internal thread (bsp)
150-pga-9v: 1.5“ (40/49) internal thread (bsp), latching solenoid
200-pga: 2” (50/60) internal thread (bsp) 200-pga-9v: 2“ (50/60) internal thread (bsp), latching solenoid
Features - flow rate: 0.5 to 34.05 m³/h - pressure range: 1.0 to 10.4 bar (23ºc) - temperature: maximum 43º c electrical data - solenoid: 24 v / 50 hz - input current: 0.41 a (9.9 va) - standing current: 0.23 a (5.5 va) 100-pga - height: 18.4 cm - length:14.0 cm - width: 8.3 cm 150-pga - height: 20.3 cm - length:17.2 cm - width: 8.9 cm 200-pga - height: 25.4 cm - length:19.7 cm - width: 12.7 cm
Additional info
- Sold by .
- The selling price on Trendyol already includes the export-related costs.
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Barcode No: KUSB160506
- Origin: US
Rainbird Rain Bird 200 Pga 24v Solenoid Valve features
Origin
US
Safety information
Product safety information
Product description
Plastic solenoid valves– they are made to last….and last
- Plastic valve for residential/small commercial applications offering bottom and side entry. the pga series provides flexibility in applications and design.
- The diaphragm attached to the body provides longer life.
- Long lasting and reliable application.heavy duty pvc construction.
General features
Easy maintenance
The spring-loaded mechanism, designed to prevent accidental release, and the one-piece solenoid ensure easy maintenance and prevent component loss.
- adjusting the flow rate as desired thanks to the flow adjustment lever.
The system is operated with a ¼ turn and manual discharge prevents water from flowing into the valve box. it allows adjustment of the pressure regulator without opening the valve from the control unit.
- suitable sleeve solenoid.
Versatility
- adjustable pressure setting unit from 1 to 6.9 bar (prs-dial, must be ordered separately)
- 9v latching solenoid can be delivered: 100-pga-9v, 150-pga-9v, 200-pga-9v.
- compatible with rain bird mdc decoder system.
Reliability
- slow closing, which prevents the shock of impact, protecting the system from damage.
- dual filter flow solenoids prevent clogging.
MODELS
- 100-pga: 1" (26/34) female thread (bsp)
- 100-pga-9v: 1" (26/34) female thread (bsp), latching solenoid
- 150-pga: 1.5" (40/49) female thread (bsp)
- 150-pga-9v: 1.5“ (40/49) female thread (bsp), latching solenoid
- 200-pga: 2" (50/60) female thread (bsp)
- 200-pga-9v: 2“ (50/60) female thread (bsp), latching solenoid
Features
- flow rate: from 0,5 to 34,05 m³/h
- pressure range: from 1.0 to 10.4 bar (23ºc)
- temperature: max 43º c
Electrical data
- solenoid: 24 v / 50 hz
- input current: 0.41 a (9.9 va)
- permanent current: 0.23 a (5.5 va)
100–pga
- height: 18.4 cm
Length: 14.0 cm
- width: 8.3 cm
150–pga
- height: 20.3 cm
Length: 17.2 cm
- width: 8.9 cm
200–pga
- height: 25.4cm
Length: 19.7 cm
- width: 12.7cm
