Home 61mm Bracelet

Product description

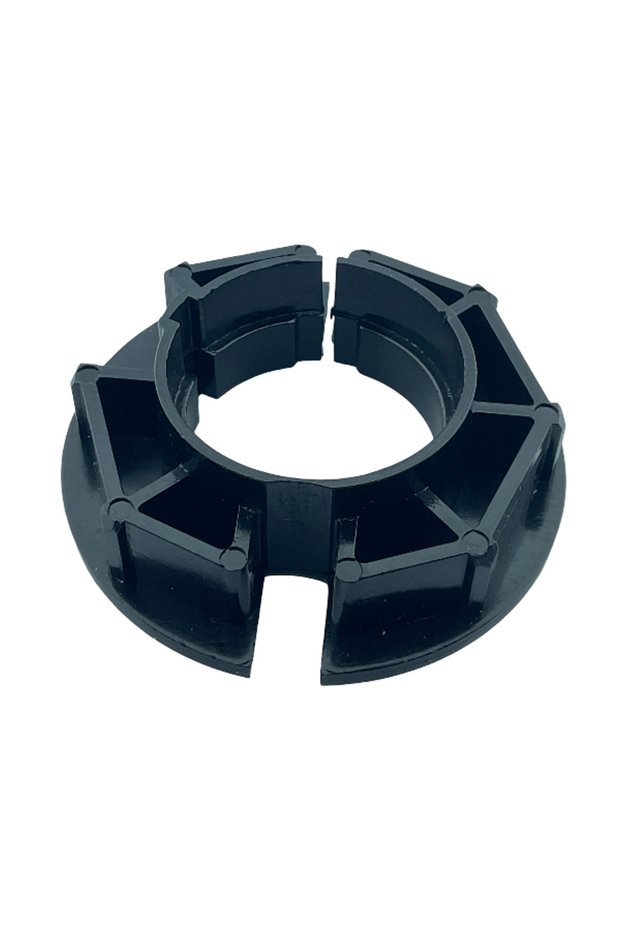

Spy492 - 61mm bracelet product code: spy492 product type: motor accessory (adapter bracelet / filler part / 61mm) compatibility: 61mm (6.1 cm) jumbo roller blind tubes color: black (standard technical part color) 1. Product description: the jumbo motor collar spy492 is a plastic adapter collar used to equalize the body diameter of motors or mechanisms installed inside jumbo roller blind tubes with a 61mm outer diameter.

it is generally used between the motor's "crown" and "drive" adapters to provide support along the motor's body or to cover the difference in diameter.

 Filling the gaps: fills the space between the engine body and the 61mm wide pipe, preventing the engine from rattling inside the pipe.

 Quiet operation: prevents the metal body of the motor from hitting the aluminum tube, absorbing vibration and noise.

 Alignment: keeps the engine sitting properly on the pipe axis.

2. Technical specifications: this technical component is crucial for the stability of jumbo motorized systems.  Material: flexible or semi-rigid plastic (black).

 Diameter: the outer diameter is suitable for the inner structure of the 61mm pipe.

 Design: the channel structure to pass through the nails in the pipe.

 Usage: it is passed through the engine body.

3. Areas of use  Motorized jumbo blinds: for all tubular motor systems using 61mm pipes.

 Adaptation: used in conjunction with the spy488 (adapter set) when adapting standard engines to 61mm pipes.

 Vibration prevention: as an additional support in situations where the engine hits the pipe.
