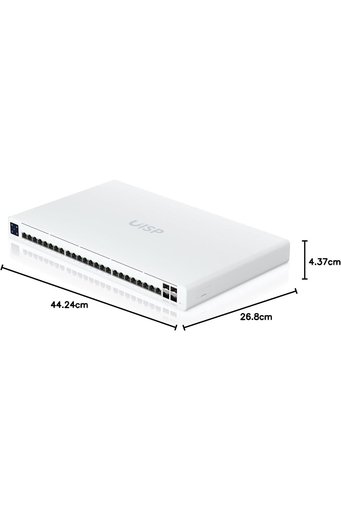

Ubiquiti Networks Ubiquiti UISP-S-Pro Gigabit PoE Switch for WISP MicroPoP Applications, 24 x GbE RJ45 Ports, 4 x 10G SFP Port, Fanless Thermal Cooling, Silent Operation, White

Product description

The Ubiquiti UISP Switch is a fanless, Layer 2 PoE switch ideal for wireless ISP (WISP) deployments.

It features (24) GbE RJ45 ports, including (16) with 27V passive PoE output, and (4) SFP+ ports for an additional fiber uplink option.

This -effective solution helps WISPs deliver Gigabit wireless speeds to customers.

With a hefty 220W total PoE supply, it provides substantial power to every radio in your service network.

For larger deployments, it can be paired with the UISP Console to create a cohesive routing and switching hub.

The switch is managed with the UISP Application, a centralized platform for monitoring and managing all UISP devices.

It includes port isolation, speed limiting, DHCP snooping functionality, and a 1.3&quot

LCM color touchscreen.

An additional Power TransPort input is available for DC redundancy.

TECHNICAL SPECIFICATIONS: Total Non-Blocking Throughput: 64 Gbps, Switching Capacity: 128 Gbps, Forwarding Rate: 95.23 Mpps, Networking Interface: 24 x GbE RJ45 LAN ports, 4 x 1/10G SFP+ ports, Management Interface: Ethernet In-band, Bluetooth, Power Method: 1 x Universal AC input, 100-240V AC, 4.4A Max.

, 50/60 Hz, 1 x Power TransPort DC input 27V DC, 9.3A, Power Supply: AC/DC, Internal, 250W, Supported Voltage Range: 100—240V AC, Max.

Power Consumption: 30W (Excluding PoE output), PoE interface: 16 x 27V passive PoE - 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-)

Ports 1 to 16, Max.

Passive PoE Wattage per Port: 30W/27V DC, Operating Environment: -10°C to 50°C (14°F to 122°F).

Additional info

• Sold by
  ITECH DEVICES
  .
• A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
• Barcode No: 810010074201
