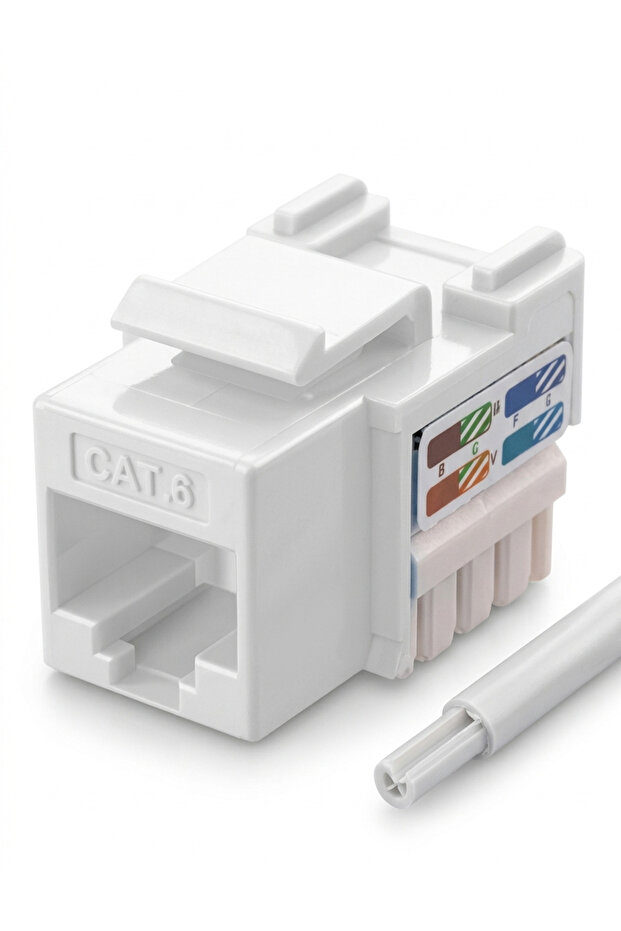

HANSEN RJ 45 Keystone Jack

Universal Compatibility: Fits all standard keystone openings (16mm x 14.6mm) for walls and panels. Tool-Free / IDC Termination: (Choose one) Features 110/Krone IDC (Insulation Displacement Connector) terminals for quick punch-down tool installation, or a tool-less design for fast and easy terminations without special tools. Color-Coded Wiring: Clearly labeled T568A and T568B wiring diagrams on the housing ensure accurate installation every time. Staggered Pins: Internal circuit board design reduces crosstalk and maintains signal integrity for high-speed data transmission. Durable Construction: High-impact flame-retardant plastic housing with 50-micron gold-plated contacts for corrosion resistance and reliable connectivity. Shuttered Port: Includes a built-in dust shutter to protect contacts when not in use.

Punch Down: Use a 110-style punch-down tool to push the wires firmly into the slots. The tool will cut off any excess wire. Secure: Snap the dust cover or strain-relief cap onto the jack body. Mount: Insert the terminated jack into a keystone wall plate or patch panel until it clicks into place. Warnings & Safety Information Installation Hazard: Network cables should not be installed in high-voltage electrical boxes or alongside裸露 power lines. Keep at least 5 inches (12cm) away from standard electrical wiring to prevent interference. Proper Tooling: When using a punch-down tool, ensure the blade is facing the correct direction (cutting side out) to avoid damaging the jack. Do Not Overtwist: Do not untwist the wire pairs more than 0.5 inches (1.3 cm) from the jacket; excessive untwisting can degrade network performance. Vision Hazard: Do not stare into the RJ45 port while the network is active. Although low voltage, laser light (PoE or Fiber nearby) can potentially harm eyesight.
