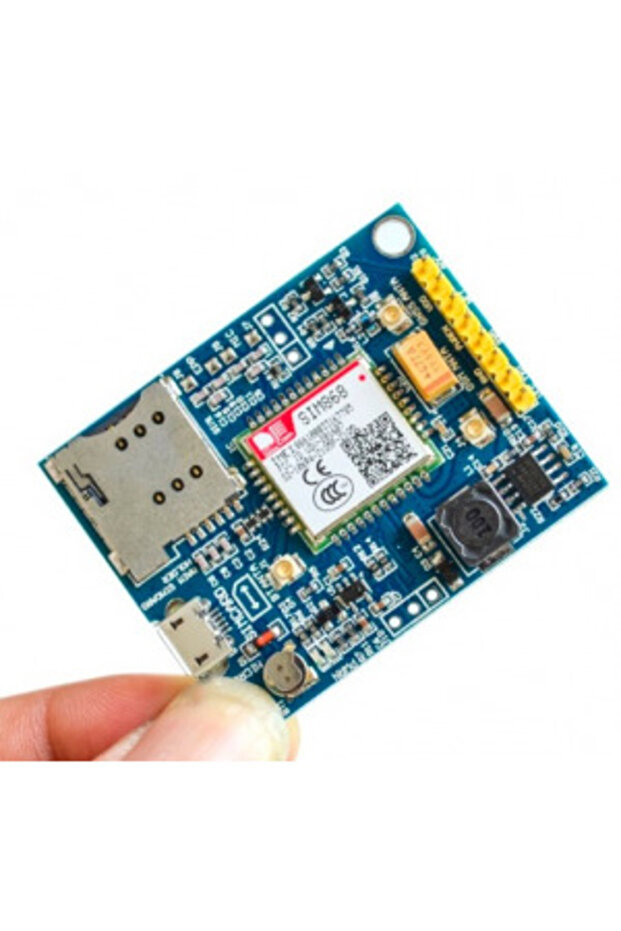

Generic SIM868 GSM GPRS GPS MODULE

Product description

Description The SIM868 module is a complete quad-band GSM/GPRS module that combines GNSS technology for satellite navigation.

The compact design with LCC and LGA pads will significantly save customers time and money in developing GNSS enabled applications.

Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.

Specifications for GPRS Data GPRS class 12: max.

85.6 kbps (downlink/uplink) PBCCH support Coding schemes: CS 1, 2, 3, 4 PPP-stack USSD Specifications for SMS via GSM/GPRS Point-to-point MO and MT SMS cell broadcast Text and PDU mode General Features Quad-band 850/900/1800/1900MHz GPRS multi-slot class 12/10 GPRS mobile station class B Compliant to GSM phase 2/2+ Class 4 (2 W @ 850/900MHz) Class 1 (1 W @ 1800/1900MHz) Dimensions: 17.6*15.7*2.3mm Weight: 1.5g Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands) Supply voltage range: 5~18Vdc Low power consumption Operation temperature: -40℃ ~85℃ Software features 0710 MUX protocol Embedded TCP/UDP protocol FTP/HTTP MMS POP3/SMTP DTMF Jamming Detection Audio Record SSL Specification for GPS Receiver type 22 tracking /66 acquisition channel GPS L1 C/A code Sensitivity Tracking: -166 dBm Cold starts : -148 dBm Time-To-First-Fix Cold starts: 29s (typ.

) Hot starts: &lt

1s Warm starts: 22s Accuracy Horizontal position : &lt

2.5m CEP Interfaces 77 SMT pins, including: SIM Card Interfaces SIM card: 3V/ 1.8V Analog audio interface RTC GNSS backup I2C interface USB interface Serial interface SD GPIO ADC GSM Antenna pad GNSS Antenna pad Bluetooth Antenna pad
