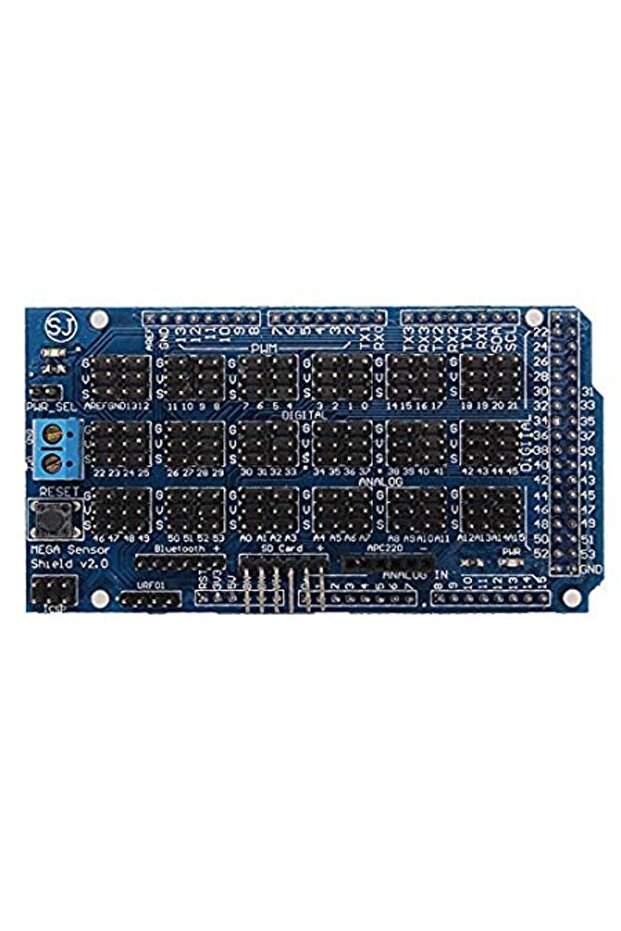

Generic sensor shield for arduino mega V5.0

Product description

Description The Arduino 1/0 Expansion Shield provides an easy way to connect sensors, servos, and RS485 devices to the Arduino board.

It expands Arduit Digital 1/0 and Analog Input Pins with Power and GND.

It also provides separate PWM Pins which are compatible with standard servo connectors Another unique feature is that the 1/0 shield has a built-in RS485 converter, which allows Arduino to communicate with RS485 devices.

The communication socket provides an extremely easy way to plug in a wireless module such as the APC220 RF module or the DF-Bluetooth module.

It has individual power inputs for servos.

A servo power jumper allows the user to select between using external power or internal power to drive the servos.

Specifications PIN13 LED Pilot Digital 10 Ports DO-D13 Analog 10 Ports AO-A5 Reset Button Power In Power LED SD Card Interface Ultrasonic Interface RS232 Interface(TTL) Bluetooth Interface APC220 Interface IIC Interface 12864 LCD Parallel Interface 12864 LCD Serial Interface Features Sensor Shield V5.0 allows you to connect to various modules like sensors, servos, relays, buttons, and potentiometers Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, Connected with a plain 2.54mm dual-female cable, you may start playing already Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language.

Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.

g.

Flash, Processing, MaxMSP) The open-source IDE can be downloaded for free (currently for Mac OS X, Windows and Linux)
