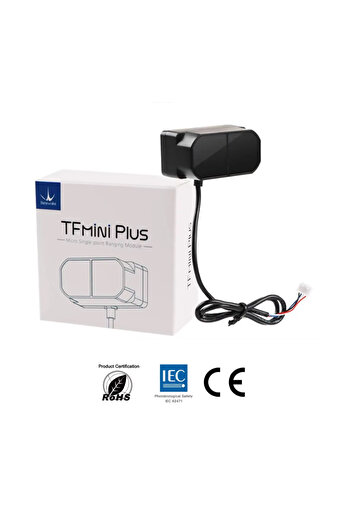

Generic Benewake TF Mini-Plus Lidar Laser Range Sensor Module TOF Distance Ranging Sensor Interface UART I2C

Product description

TF mini Plus TFmini Plus is an upgraded product based on TFmini, based on the TOF (time of flight) principle, combined with unique optical, electrical, and algorithm design, mainly to achieve stable, accurate, high sensitivity and high-speed distance measurement functions.

In addition to the low cost, small size, and low power consumption of TFmini, the product itself also adds IP65 protection, which is more adaptable to different environments such as strong outdoor light, different temperatures, and different reflectances.

Product parameters: Accuracy: ±5cm@(0.1-6m)/±1% @ (6m-12m) Measuring range: 0.1m ~ 12m Distance resolution: 5mm Frame rate: 1-1000Hz (adjustable) Ambient light resistance: 70klux Working temperature: -20 ℃ ~ 60 ℃ Protection level: IP65 Light source: LED Center wavelength: 850nm Signal receiving angle: 3.6 ° Input voltage: 5V ± 0.5V Average current: ≤110mA Power consumption: 550mW Peak current: 500mA Communication level: LVTTL (3.3V) Shell material: ABS + PC Storage temperature: -20 ℃ ~ 75 ℃
