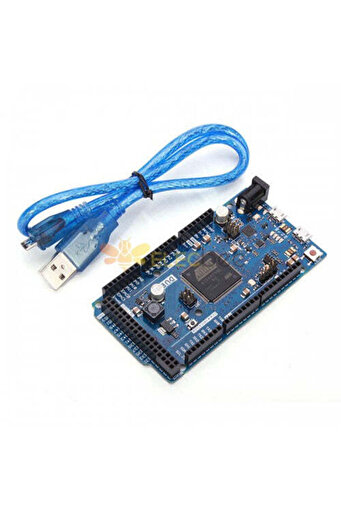

Generic Arduino DUE with usb cable

Product description

Description The Arduino Due is a microcontroller board based on the Atmel SAM3X8E CPU, which is the first one based on 32-bit ARM core arduino.

The Arduino Due has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, a USB-OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

Color: show as pictures PLS NOTE that due to lighting effects, monitor's brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item! Note: This is not the same as other Arduino boards, the Arduino Due board runs at 3.3V.

The maximum voltage that the I/O pins can tolerate is 3.3V.

Providing higher voltages, like 5V to an I/O pin could damage the board.

Specifications Condition: New Microcontroller：AT91SAM3X8E Operating Voltage：3.3V Input Voltage (recommended)：7-12V Input Voltage (limits)：6-16V Digital I/O Pins ：54 (of which 12 provide PWM output) Analog Input Pins：12 Analog Outputs Pins：2 (DAC) Total DC Output Current on all I/O lines ：130 mA DC Current for 3.3V Pin：800 mA DC Current for 5V Pin：800 mA Flash Memory：512 KB all available for the user applications SRAM：96 KB (two banks: 64KB and 32KB) Clock Speed: 84 MHz Package Includes 1 x Arduino DUE 1 x USB cable

Additional info

• Sold by
  Blue PCB Electronics
  .
• A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
• Barcode No: 2900000001008
