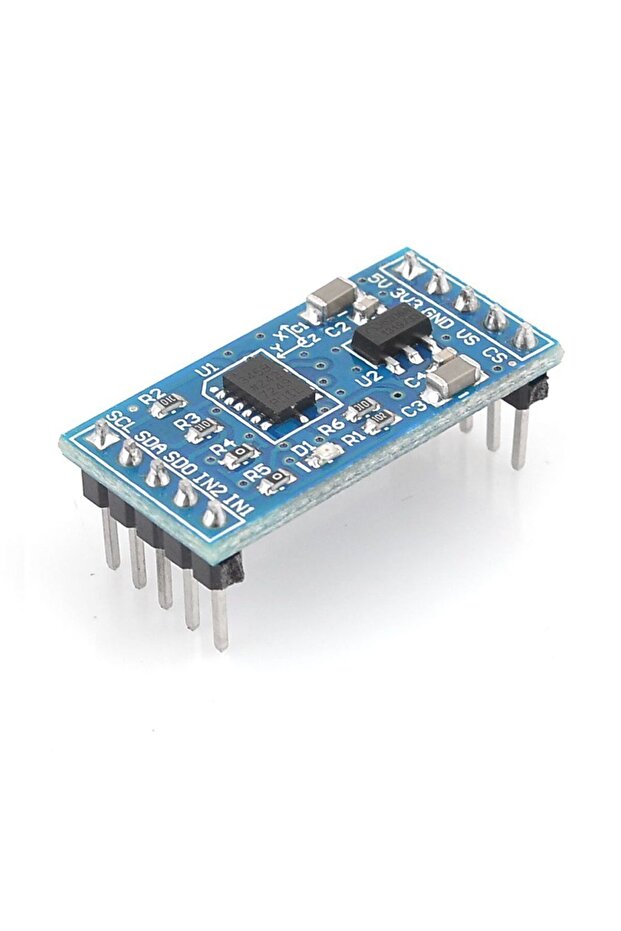

Generic 7B2 ADXL345 3-Axis Digital Acceleration of Gravity Tilt Module

Product description

Description The ADXL345 is a small, thin, low-power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g.

Digital output data is formatted as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface.

The ADXL345 is well-suited for mobile device applications.

It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock.

Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°.

Datasheet Specifications Color: Blue Material: PCB + brass Features Chipset: ADXL345

Power supply :3~5V (Module has on-board 3.3V regulator) IO Level : 3.3v (requires Level translator if interfaced with 5V IO) Communication methods: IIC/SPI communication protocol

Measuring range: +/- 2g +/-16g

3-Axis, +/- 2g

+/-4g

+/-8g

+/- 16g Applications: Flying robots, Stability control applications Dimensions: 21 x 16 x 4 mm / 0.83 x 0.63 x 0.16 inch Weight: 1 g / 0.04 oz Applications Gesture Sensing Tap/Double Tap Detection Free-Fall Detection Impact or collision Detection Accident Detection

Additional info

• Sold by
  Blue PCB Electronics
  .
• A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
• Barcode No: 2900000008106
