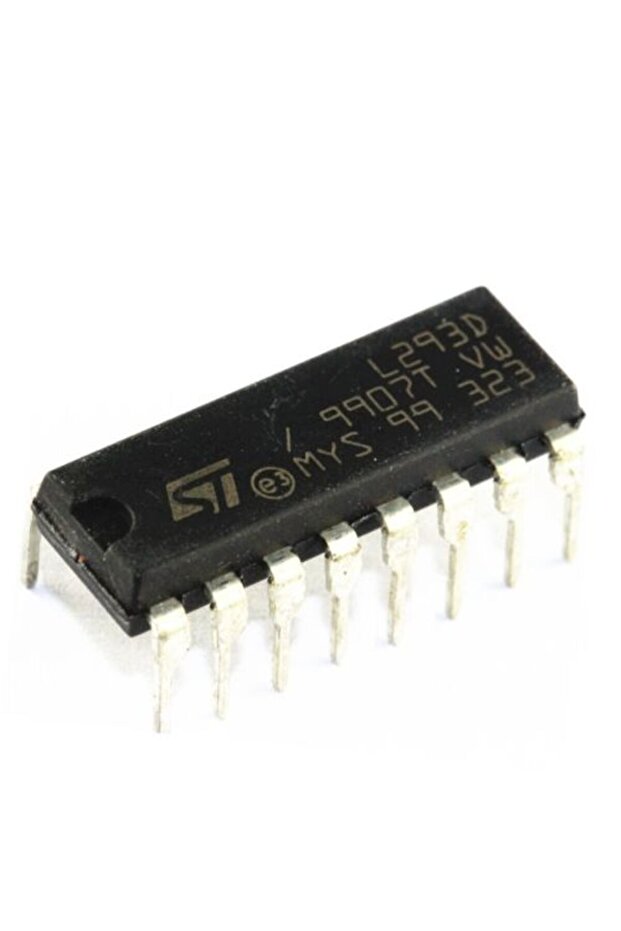

Generic 5E L293D L293 DIP/SOP Push-Pull Four-Channel Motor Driver IC

Product description

600mA OUTPUT CURRENT CAPABILITY PER CHANNEL 1.2A PEAK OUTPUT CURRENT (non repetitive) PER CHANNEL ENABLE FACILITY OVERTEMPERATURE PROTECTION LOGICAL &quot

0&quot

INPUT VOLTAGE UP TO 1.5 V (HIGH NOISE IMMUNITY) INTERNAL CLAMP DIODES DESCRIPTION The Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.

To simplify use as two bridges each pair of channels is equipped with an enable input.

A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included.

This device is suitable for use in switching applications at frequencies up to 5 kHz.

The L293D is assembled in a 16 lead plastic packaage which has 4 center pins connected together and used for heatsinking The L293DD is assembled in a 20 lead surface mount which has 8 center pins connected together and used for heatsinking.

Specification Dimension: 3.2cm x 2.4cm x 1.8cm (approx) Infrared sensor with control circuit board The sensitivity and holding time can be adjusted Working Voltage Range: DC 4.5V- 20V Current drain:&lt

60uA Voltage Output: High/Low level signal:3.3V TTL output Detection distance: 3--7M(can be adjusted) Detection range: &lt

140° Delay time: 5-200S(can be adjusted, default 5s +-3%) Blockade time: 2.5 S (default) Trigger: L: Non-repeatable trigger H: Repeat Trigger (default) Work temperature:-20-+80°C Trigger Method: L unrepeatable trigger / H repeatable trigger Package includes : 1 x L293D L293 DIP/SOP Push-Pull Four-Channel Motor Driver IC
