Highlighted features:

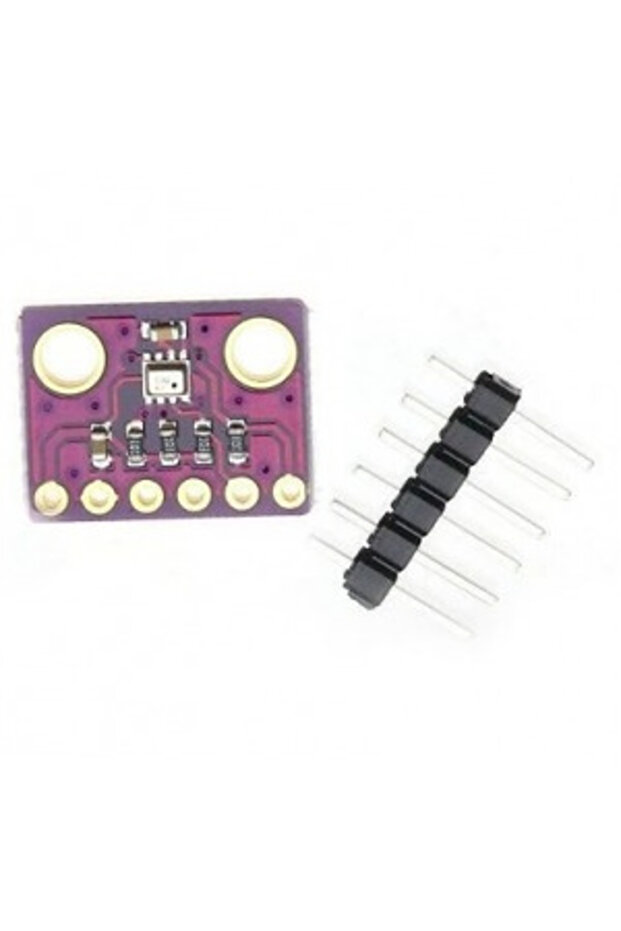

Generic 5C2 GY-BMP280-3.3V Pressure Sensor Module features
Other Features
Highly abstracted library, Selectable I2C address jumper, I2C pull-up resistors, 7-pin header (2.54mm), Two mounting holes (3.5mm), Digital interface (I2C and SPI), Low current consumption, Wide operating range, Independent sensor enable/disable, High accuracy (pressure ±1 hPa, temperature ±1.0°C, altitude ±1 meter), Altimeter function, No onboard voltage regulator or level shifter
Instructions for Use/Warnings
If connecting the board to both power rails VDD_IO 1.8V and VDD 3.3V, ensure to remove the power rail jumper GS1. Connect Vcc and GND to 3.3V and ground respectively. For I²C, connect CSB to Vcc or leave unconnected; for SPI, connect CSB to ground. To set I²C address 0x77, connect SDO to Vcc; for 0x76, leave SDO unconnected. This module lacks an onboard voltage regulator or level shifter; for 5V or other than 3.3V operating voltages, a level shifter and voltage regulator are required. Before coding, install 'Adafruit Unified Sensors' and 'Adafruit BMP 280 Library' in the Arduino>Libraries folder. Modify Adafruit_BMP280.h to change the I2C address to 0x76.
Origin
DE
Blue PCB Electronics
7.8
Seller information
Shoppers also viewed
Collage Series 13 - the Islamic Notebook That Will Make God Pleased with You (with Verses and Hadiths)
Generic 5C2 GY-BMP280-3.3V Pressure Sensor Module reviews
No reviews yet.
Product details
Additional info
- Sold by .
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Barcode No: 2900000001824
- Origin: DE
Generic 5C2 GY-BMP280-3.3V Pressure Sensor Module features
Other Features
Highly abstracted library, Selectable I2C address jumper, I2C pull-up resistors, 7-pin header (2.54mm), Two mounting holes (3.5mm), Digital interface (I2C and SPI), Low current consumption, Wide operating range, Independent sensor enable/disable, High accuracy (pressure ±1 hPa, temperature ±1.0°C, altitude ±1 meter), Altimeter function, No onboard voltage regulator or level shifter
Instructions for Use/Warnings
If connecting the board to both power rails VDD_IO 1.8V and VDD 3.3V, ensure to remove the power rail jumper GS1. Connect Vcc and GND to 3.3V and ground respectively. For I²C, connect CSB to Vcc or leave unconnected; for SPI, connect CSB to ground. To set I²C address 0x77, connect SDO to Vcc; for 0x76, leave SDO unconnected. This module lacks an onboard voltage regulator or level shifter; for 5V or other than 3.3V operating voltages, a level shifter and voltage regulator are required. Before coding, install 'Adafruit Unified Sensors' and 'Adafruit BMP 280 Library' in the Arduino>Libraries folder. Modify Adafruit_BMP280.h to change the I2C address to 0x76.
Origin
DE
