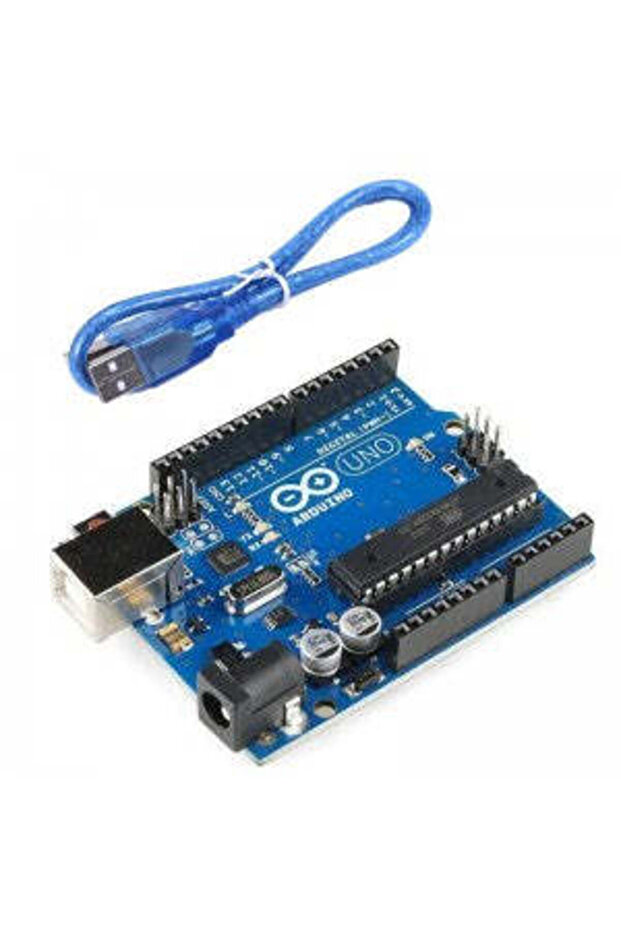

Generic 3B1 Arduino UNO R3 with blue cable

Product description

Description The Uno is a microcontroller board based on the ATmega328P.

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button.

It contains everything needed to support the microcontroller

simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

You can tinker with your UNO without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

&quot

Uno&quot

means one in Italian and was chosen to mark the release of Arduino Software (IDE) 1.0. The Uno board and version 1.0 of Arduino Software (IDE) were the reference versions of Arduino, now evolved to newer releases.

The Uno board is the first in a series of USB Arduino boards, and the reference model for the Arduino platform

for an extensive list of current, past or outdated boards see the Arduino index of boards.

You can find here your board informations.

Getting Started You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.

Technical Specifications Microcontroller ATmega328P Operating Voltage 5V Input Voltage (recommended) 7-12V Input Voltage (limit) 6-20V Digital I/O Pins 14 (of which 6 provide PWM output) PWM Digital I/O Pins 6 Analog Input Pins 6 DC Current per I/O Pin 20 mA DC Current for 3.3V Pin 50 mA Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by bootloader SRAM 2 KB (ATmega328P) EEPROM 1 KB (ATmega328P) Clock Speed 16 MHz Length 68.6 mm Width 53.4 mm Weight 25 g

Additional info

• Sold by
  Blue PCB Electronics
  .
• A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
• Barcode No: 2900000001039
• Origin: IT
