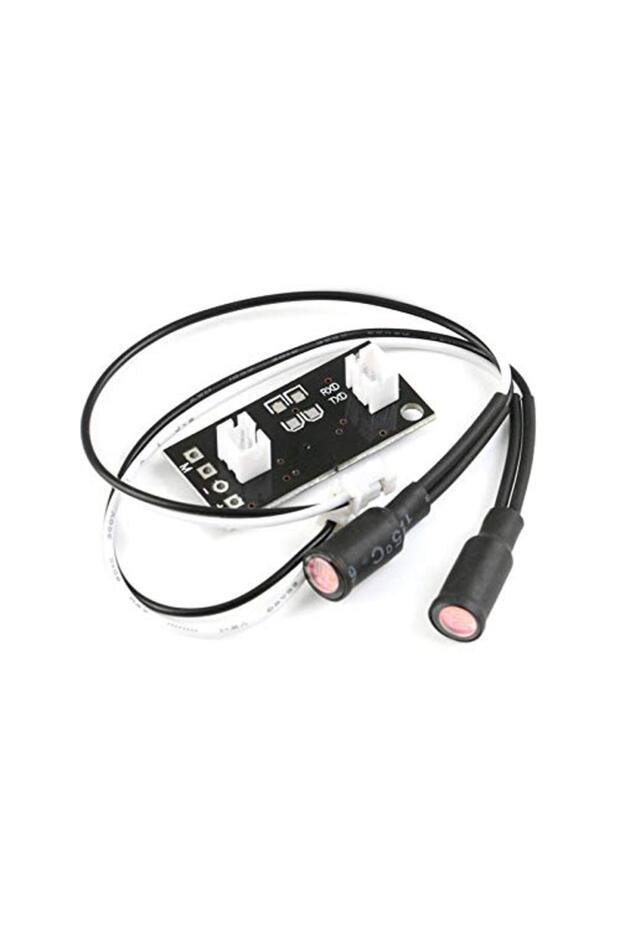

Generic 2D17 Single Axis Solar Tracking Module Search Light Solar-powered Automatic Tracker
No reviews yet.
44.50
AED
(incl. VAT)
Delivery address
Free shipping
Local delivery
Estimated delivery: 21 - 22 October
Select your address, find out the delivery date!
Trendyol's commitments
Easy and free return in 15 days.
Payment methods
Highlighted features:
Generic 2D17 Single Axis Solar Tracking Module Search Light Solar-powered Automatic Tracker features
Other Features
Single-axis tracking, Automatic tracking, Solar-powered, Electronic light signal, Anti-shake circuit
Instructions for Use/Warnings
Wiring instructions: The power supply uses a 5-5.5V DC power supply with a current of less than 1.5A. The motor uses a geared motor. The slower the speed, the better. When the power supply is 5V, the load is not heavy and the speed is stable. If the motor speed is too fast, it may cause the motor to align with the center of the light source, but swings left and right, but does not shake. This circuit uses a short delay of anti-shake. When the motor and the board are connected, the positive and negative poles are not divided. When the motor is found to rotate in the opposite direction to the light source, the motor line can be changed. The power supply must be regulated to 5.5-5.5V and cannot be directly connected to the solar panel.
Blue PCB Electronics
7.8
Seller information
Similar items
Type-c To Usb Hub 4 Port Multiplexer Compatible With Macbook Replicator Type C To Usb Converter Hub
Generic 2D17 Single Axis Solar Tracking Module Search Light Solar-powered Automatic Tracker reviews
No reviews yet.
Product details
Product description
Description A single-axis solar tracking module allows a solar panel to maximize its power output by tracking the movement of the sun.
These modules can be used to generate electricity more efficiently in a wider range of solar angles, thus making them a popular choice in many commercial solar installations.
Light Solar Trackers produce an electronic light signal to adjust the solar tracking module to face the sun's position.
Solar-powered Automatic Tracker consists of two parts, the inverter box and the combiner box with relays, which enable the solar tracking system to operate based on the power of the solar module.
Specifications Size: 35*16*1.2mm Voltage: 5-5.5VDC Current: <
1.5A Interface: Power + - Motor M Principle: Use an obstruction on the photoresistor.
When the light strikes the obstruction to form a shadow, and the light on one side forms a difference with the other side, the motor is controlled to find the balance point, that is, the center of the light source.
Line length: 15CM Wiring instructions The power supply uses a 5-5.5V DC power supply with a current of less than 1.5A.
The motor uses a geared motor.
The slower the speed, the better.
When the power supply is 5V, the load is not heavy and the speed is stable.
If the motor speed is too fast, it may cause the motor to align with the center of the light source, but swings left and right, but does not shake.
This circuit uses a short delay of anti-shake.
When the motor and the board are connected, the positive and negative poles are not divided.
When the motor is found to rotate in the opposite direction to the light source, the motor line can be changed.
The power supply must be regulated to 5.5-5.5V and cannot be directly connected to the solar panel
Additional info
- Sold by .
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Barcode No: 2900000005723
Generic 2D17 Single Axis Solar Tracking Module Search Light Solar-powered Automatic Tracker features
Other Features
Single-axis tracking, Automatic tracking, Solar-powered, Electronic light signal, Anti-shake circuit
Instructions for Use/Warnings
Wiring instructions: The power supply uses a 5-5.5V DC power supply with a current of less than 1.5A. The motor uses a geared motor. The slower the speed, the better. When the power supply is 5V, the load is not heavy and the speed is stable. If the motor speed is too fast, it may cause the motor to align with the center of the light source, but swings left and right, but does not shake. This circuit uses a short delay of anti-shake. When the motor and the board are connected, the positive and negative poles are not divided. When the motor is found to rotate in the opposite direction to the light source, the motor line can be changed. The power supply must be regulated to 5.5-5.5V and cannot be directly connected to the solar panel.
