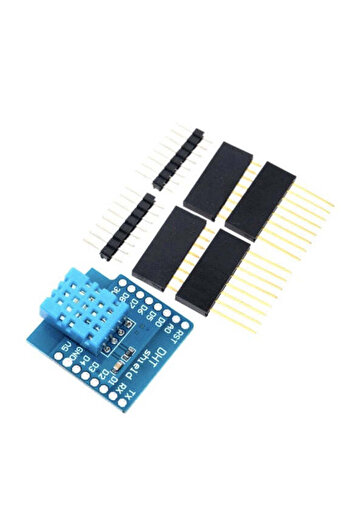

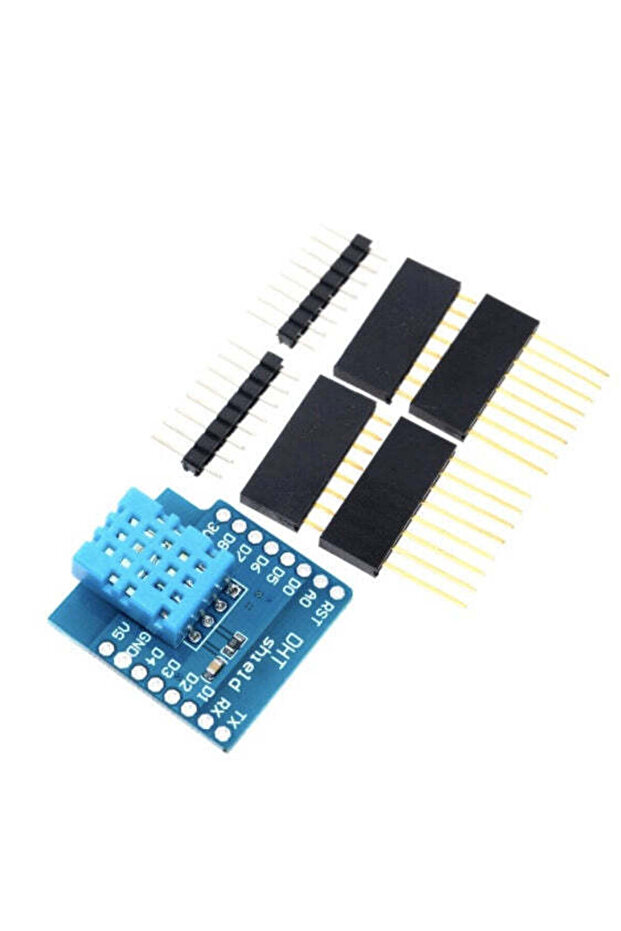

Generic 2C15 DHT Shield for WeMos D1 mini DHT11 Single-bus digital temperature and humidity sensor module sensor

Product description

Description A DHT Shield for WeMos D1 mini is a hardware add-on that allows you to easily connect and use a DHT11 Single-bus digital temperature and humidity sensor module with your WeMos D1 mini microcontroller board.

The DHT Shield provides a simple and straightforward way to interface the sensor with your WeMos D1 mini board, without the need for any additional wiring or components.

With this shield, you can easily monitor and control temperature and humidity levels in your environment, allowing you to optimize conditions and improve your projects.

Relative humidity Resolution: 16Bit Repeatability: ±1% RH Accuracy: At 25℃ ±5% RH Interchangeability: fully interchangeable Response time: 1 / e (63%) of 25℃ 6s 1m / s air 6s Hysteresis: &lt

± 0.3% RH Long-term stability: &lt

± 0.5% RH / yr in Temperature Resolution: 16Bit Repeatability: ±0.2℃ Range: At 25℃ ±2℃ Response time: 1 / e (63%) 10S Electrical Characteristics Power supply: DC 3.5～5.5V Supply Current: measurement 0.3mA standby 60μ A Sampling period: more than 2 seconds Package includes 1 × dht shield 2 × long female pins 2 × short female pins 2 × regular pins

Additional info

• Sold by
  Blue PCB Electronics
  .
• A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
• Barcode No: 2900000006058
