Highlighted features:

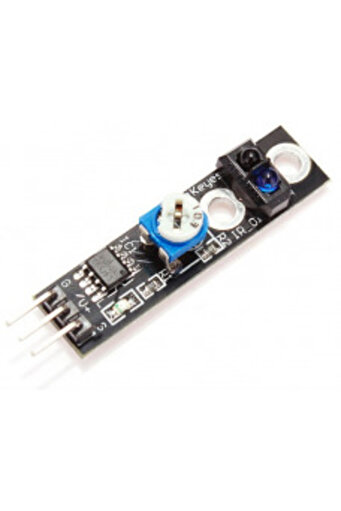

Generic 2C13 Tracking sensor module KY-033 features
Other Features
Adjustable sensitivity, Infrared technology, Built-in receiver and transmitter, 3-pin configuration
Instructions for Use/Warnings
The KY-033 Line Tracking Sensor detects black lines on white backgrounds or white lines on black backgrounds by sensing reflected IR energy. On a black surface, it gives a zero output signal; on a white surface, it gives a positive signal (digital one). Sensitivity can be adjusted using the knob (VR1). Pinout: G (Ground), V+ (+5V), S (Signal). A dark surface pulls the Signal pin HIGH, while a light surface pulls it LOW. For Arduino integration: Connect G to Arduino GND, V+ to Arduino +5V, and S to Arduino Digital Pin 8. An example Arduino sketch is provided to detect surfaces and control an LED. Test by applying power to Arduino, opening Serial Monitor, and observing output messages and LED status. Adjust sensitivity via VR1 as needed.
Blue PCB Electronics
7.8
Seller information
Generic 2C13 Tracking sensor module KY-033 reviews
No reviews yet.
Product details
Additional info
- Sold by .
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Barcode No: 2900000007536
Generic 2C13 Tracking sensor module KY-033 features
Other Features
Adjustable sensitivity, Infrared technology, Built-in receiver and transmitter, 3-pin configuration
Instructions for Use/Warnings
The KY-033 Line Tracking Sensor detects black lines on white backgrounds or white lines on black backgrounds by sensing reflected IR energy. On a black surface, it gives a zero output signal; on a white surface, it gives a positive signal (digital one). Sensitivity can be adjusted using the knob (VR1). Pinout: G (Ground), V+ (+5V), S (Signal). A dark surface pulls the Signal pin HIGH, while a light surface pulls it LOW. For Arduino integration: Connect G to Arduino GND, V+ to Arduino +5V, and S to Arduino Digital Pin 8. An example Arduino sketch is provided to detect surfaces and control an LED. Test by applying power to Arduino, opening Serial Monitor, and observing output messages and LED status. Adjust sensitivity via VR1 as needed.
