Highlighted features:

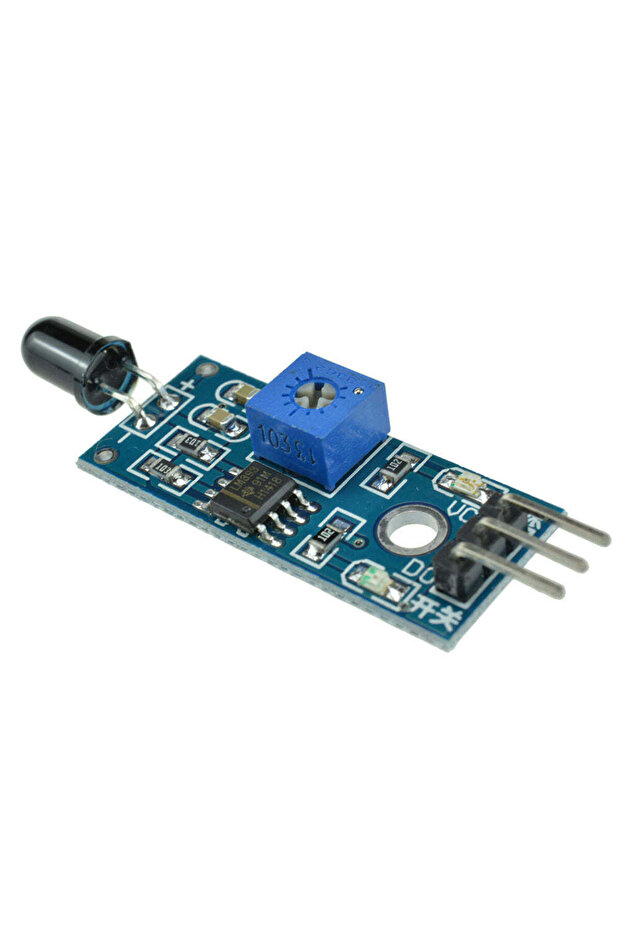

Generic 1C9 IR Infrared Flame Detection Sensor Module Flame Sensor features
Other Features
Flame Detection (760-1100nm wavelength, up to 80cm detection distance), 60-degree Wide Detection Angle, Adjustable Sensitivity (via blue digital potentiometer), Clean Waveform Comparator Output (>15mA driving ability), Precision Potentiometer, 3.3V-5V Operating Voltage, Digital Switching Output (DO), Easy Installation (fixed bolt holes), Wide Voltage LM393 Comparator, Compact PCB size (3.2cm x 1.4cm)
Instructions for Use/Warnings
Instructions for Use: Connect VCC to Arduino 5V (or any 3.3V-5V power source), GND to Arduino GND, and D0 to an Arduino digital pin. For a fire detection system with a buzzer, connect the IR Flame Sensor Module's VCC to Arduino 5V, GND to Arduino GND, and D0 to Arduino digital pin 2. Connect the buzzer's positive pin to Arduino digital pin 11 and negative pin to Arduino GND. A sample Arduino code is provided to sound an alarm on the buzzer and print the status to the serial monitor when a flame is detected.
Blue PCB Electronics
7.8
Seller information
Generic 1C9 IR Infrared Flame Detection Sensor Module Flame Sensor reviews
No reviews yet.
Product details
Additional info
- Sold by .
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Barcode No: 2900000007895
Generic 1C9 IR Infrared Flame Detection Sensor Module Flame Sensor features
Other Features
Flame Detection (760-1100nm wavelength, up to 80cm detection distance), 60-degree Wide Detection Angle, Adjustable Sensitivity (via blue digital potentiometer), Clean Waveform Comparator Output (>15mA driving ability), Precision Potentiometer, 3.3V-5V Operating Voltage, Digital Switching Output (DO), Easy Installation (fixed bolt holes), Wide Voltage LM393 Comparator, Compact PCB size (3.2cm x 1.4cm)
Instructions for Use/Warnings
Instructions for Use: Connect VCC to Arduino 5V (or any 3.3V-5V power source), GND to Arduino GND, and D0 to an Arduino digital pin. For a fire detection system with a buzzer, connect the IR Flame Sensor Module's VCC to Arduino 5V, GND to Arduino GND, and D0 to Arduino digital pin 2. Connect the buzzer's positive pin to Arduino digital pin 11 and negative pin to Arduino GND. A sample Arduino code is provided to sound an alarm on the buzzer and print the status to the serial monitor when a flame is detected.
