Highlighted features:

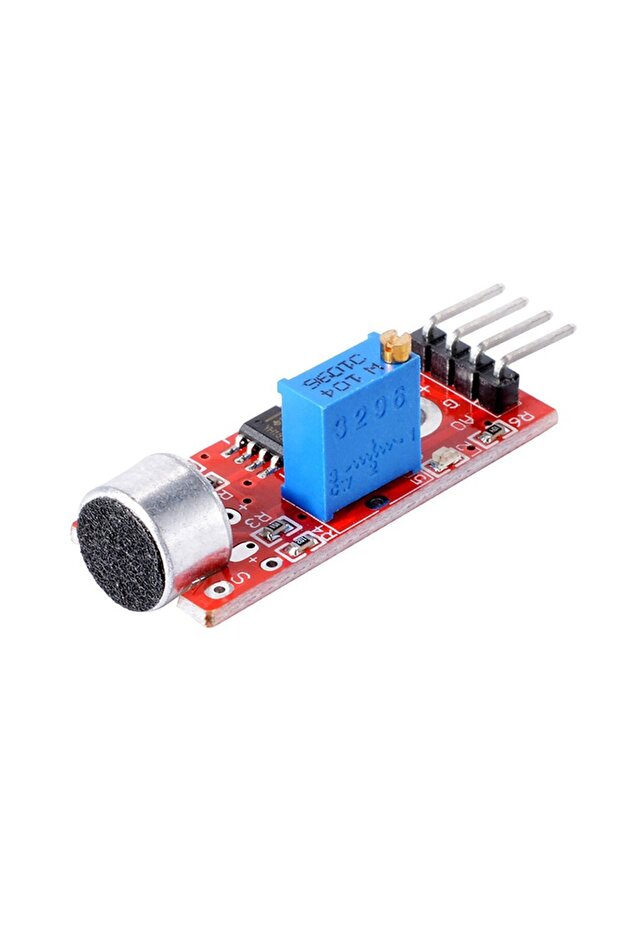

Generic 1C13 KY-037 Microphone sensor module (high sensitivity) features
Other Features
Onboard potentiometer for sensitivity adjustment, M3 mounting hole
Instructions for Use/Warnings
This module is ideally suited for adding sound control to your project. It can detect noise and produce an analog output that can be used to trigger a switch-like response. An onboard potentiometer allows you to tailor the sensitivity or trigger level to account for a project's background noise. The module has a M3 mounting hole for easy attachment. Pin 1 (analog output) changes value according to sound intensity and connects to Arduino analog (ADC) pins. Pin 4 (digital output) activates when sound intensity reaches a threshold, adjustable via the potentiometer. Required Materials: Arduino UNO R3, KY-037, male-female-jumper-wire. Wiring: Connect wires according to the provided circuit for analog mode. Coding: void setup() { Serial.begin(9600); } void loop() { int sensorValue = analogRead(A0); Serial.println(sensorValue); } After coding, press Ctrl + Shift + L to open the Serial Plotter screen.
Shoppers also viewed
Set of 4 Lined Notebooks 13 X 20 Cm 56 Sheets Cardboard Cover Spiral Notebook Notebook Line Series
Generic 1C13 KY-037 Microphone sensor module (high sensitivity) reviews
No reviews yet.
Product details
Product description
Description: This module is ideally suited for adding sound control to your project.
This is a sound detection module that can detect noise and produce an analog output that can be used to trigger a switch-like response.
This allows you to replace those mechanical switches that have been holding back your project all this time with something a little noisier or begin a long-term sound level monitoring system.
An onboard potentiometer allows you to tailor the sensitivity or trigger level to account for a project's background noise.
As a simple module, it will suit use within a large range of projects based on microcontrollers, such as Arduino boards and the Raspberry Pi.
The module has a M3 mounting hole, allowing for easy attachment to a multitude of surfaces.
Documentation: KY-037 datasheet Pinout: This module has 4 pins
2 of them are for power supply.
Pin 1: The analog output.
It’s value changes according to the intensity of the received sound.
It can be connected to the Arduino analog (ADC) pins.
Pin 4: The digital output.
It acts as a key, and it activates when sound intensity has reached a certain threshold.
The sensitivity threshold can be adjusted using the potentiometer on the sensor.
You can see the pinout of this module in the following image.
Required Materials: Arduino UNO R3 KY-037 male-female-jumper-wire Wiring: Connect the wires according to the following circuit: This circuit is for analog mode.
Coding: void setup() { // initialize serial communication at 9600 bits per second: Serial.
begin(9600)
} // the loop routine runs over and over again forever: void loop() { // read the input on analog pin 0: int sensorValue = analogRead(A0)
// print out the value you read: Serial.
println(sensorValue)
} Then press Ctrl + Shift + L to open the Serial Plotter screen.
Additional info
- Sold by .
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Barcode No: 2900000006812
Generic 1C13 KY-037 Microphone sensor module (high sensitivity) features
Other Features
Onboard potentiometer for sensitivity adjustment, M3 mounting hole
Instructions for Use/Warnings
This module is ideally suited for adding sound control to your project. It can detect noise and produce an analog output that can be used to trigger a switch-like response. An onboard potentiometer allows you to tailor the sensitivity or trigger level to account for a project's background noise. The module has a M3 mounting hole for easy attachment. Pin 1 (analog output) changes value according to sound intensity and connects to Arduino analog (ADC) pins. Pin 4 (digital output) activates when sound intensity reaches a threshold, adjustable via the potentiometer. Required Materials: Arduino UNO R3, KY-037, male-female-jumper-wire. Wiring: Connect wires according to the provided circuit for analog mode. Coding: void setup() { Serial.begin(9600); } void loop() { int sensorValue = analogRead(A0); Serial.println(sensorValue); } After coding, press Ctrl + Shift + L to open the Serial Plotter screen.
