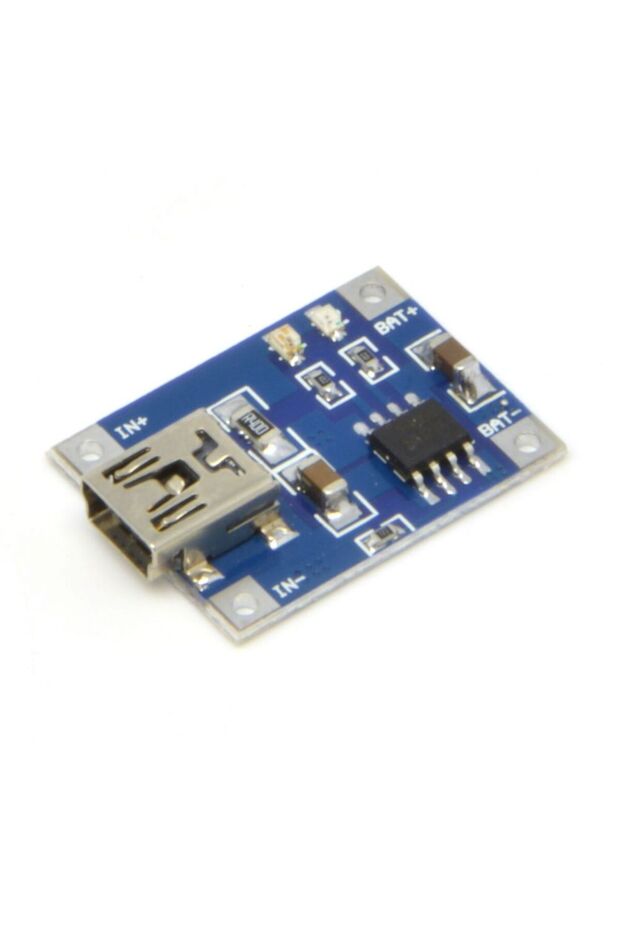

Generic 1B12A Mini 5v USB 1A Lithium Battery Charging Board Charging Board
No reviews yet.
27.25
AED
(incl. VAT)
Delivery address
Free shipping
Local delivery
Estimated delivery: 22 - 24 October
Select your address, find out the delivery date!
Trendyol's commitments
Easy and free return in 15 days.
Payment methods
Highlighted features:
Generic 1B12A Mini 5v USB 1A Lithium Battery Charging Board Charging Board features
Other Features
Linear charging, 1A adjustable current, 1.5% charge precision, LED indicator (charging/full), Mini USB input, Over-voltage protection, Wide operating temperature range
Instructions for Use/Warnings
Ampere meter can only be connected to 5v input end of the module. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough. The connection wire should not be too thick. Make sure the connect point is good. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip. NO Reveral polarity
Blue PCB Electronics
7.8
Seller information
Shoppers also viewed
Collage Series 13 - the Islamic Notebook That Will Make God Pleased with You (with Verses and Hadiths)
Generic 1B12A Mini 5v USB 1A Lithium Battery Charging Board Charging Board reviews
No reviews yet.
Product details
Product description
Description 1. Charge module- Linear charging.
2. Current- 1A adjustable.
3. Charge precision- 1.5%.
4. Input voltage- 4.5V-5.5V.
5. Full charge voltage- 4.2V.
6. Led indicator- red is charging blue is full charged.
7. Input interface- mini USB.
8. Work temperature- -10℃ to 85℃.
9. Inversed polarity- NO.
NOTE: Ampere meter can only be connected to 5v input end of the module.
It is better that the charging current is 37% of the battery capacity.
If you charge to the battery of 1000mAH, current of 400 is enough.
The connection wire should not be too thick.
Make sure the connect point is good.
If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal.
It is protection function, auto-substract the charging current to avoid burn damage to chip.
NO Reveral polarity Package Includes 1 x 5V Mini USB 1A Lithium Battery Charging Board Charger Module IN 4.5V-5.5v
Additional info
- Sold by .
- A maximum of 5 units of this product can be ordered. Trendyol reserves the right to cancel orders over 5 units.
- Barcode No: 2900000008663
Generic 1B12A Mini 5v USB 1A Lithium Battery Charging Board Charging Board features
Other Features
Linear charging, 1A adjustable current, 1.5% charge precision, LED indicator (charging/full), Mini USB input, Over-voltage protection, Wide operating temperature range
Instructions for Use/Warnings
Ampere meter can only be connected to 5v input end of the module. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough. The connection wire should not be too thick. Make sure the connect point is good. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip. NO Reveral polarity
